Refuse Truck

10" AHD Quad Monitor Built-in DVR

This is our 7-inch quad screen on a larger scale for those who require a clearer image. It offers a range of screen modes, allowing it to show a single camera, two cameras, three cameras, or four cameras at once. If you have side cameras, the H pattern or the traditional quad mode are the two display options in 4 camera mode. It is compatible with cars running on 12 or 24 volts, automatically adapting to the voltage provided.

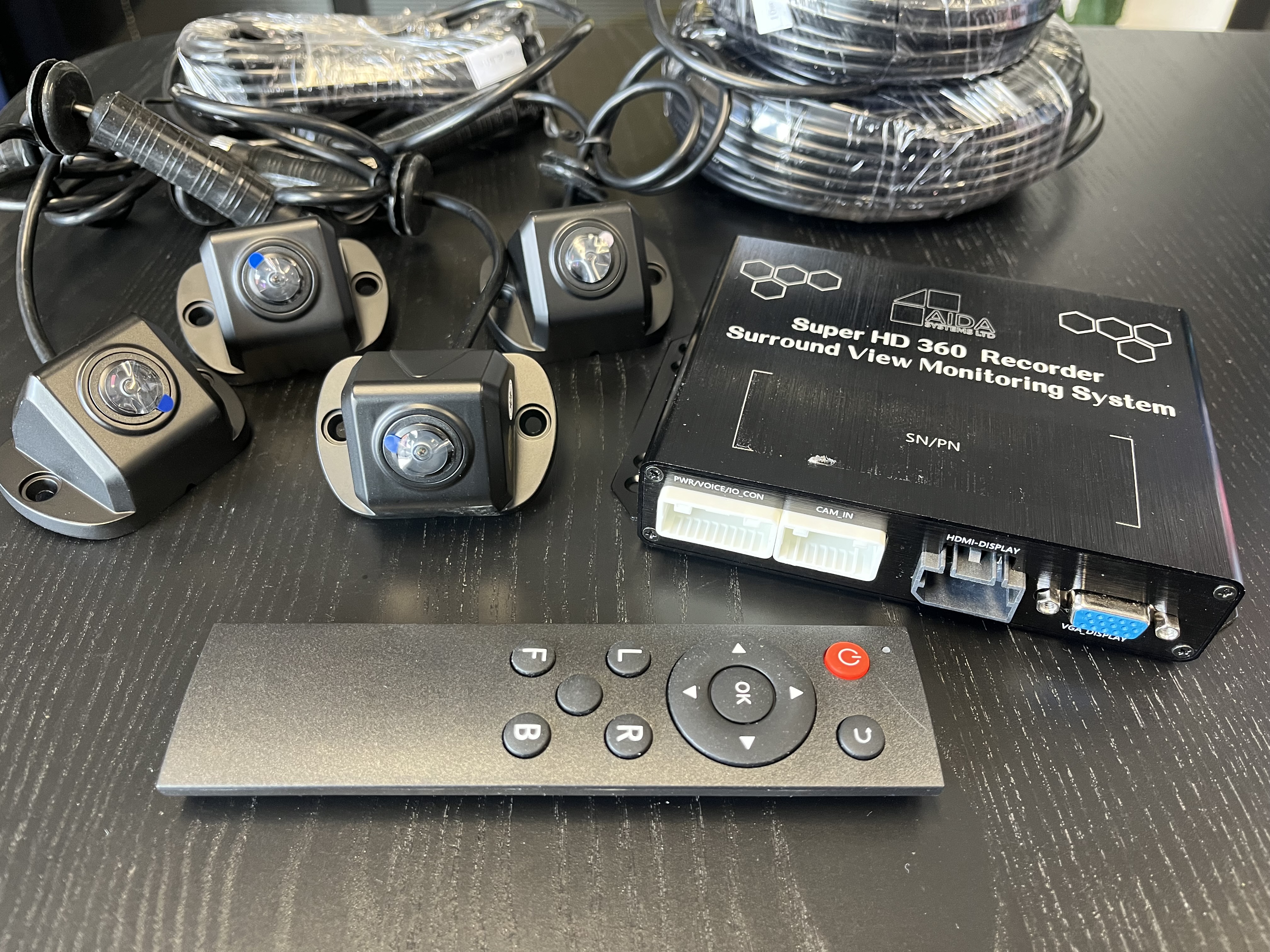

360° Seamless Surrender Bird View Truck System

* camera x 4pcs
* Manual x 1pc
* AHD box x 1pc
* main cable x 1pc
* Remote cable x 1pc
* calibration tape x 2pc
* remote x 1pc
* power cable x 1pc

* Power Supply:DC 9V~40V
* System: PAL / NTSC
* 4 ch video inputs ,1 video output
* AHD images,4 channels 1080P videos playback
* 3D & 360° Seamless Merging
* 360° Blind Spots Coverage
* Compatiable 128G TF card or 1T USB Hard disk
* 1080p camera input,CVBS output
* Bulit-in VGA port
* Dynamic & Intelligent View Angle Switching
* 24 Hour Parking Monitoring (optional)
* Suitable for Buses, Trucks, excavator, loader, Tanks and even Jumbo Jets
* Vehicle length: ≤18m.
